Structural Pattern

성질이 비슷한 객체가 너무 많아 메모리를 쓸데없이 많이 잡아먹는다.

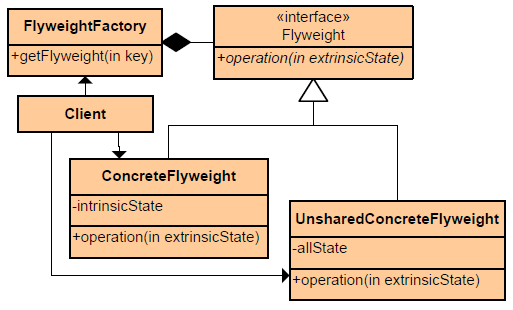

공유되는 자원(intrinsic state)과 공유되지 않는 자원(extrinsic state)을 나누고 객체를 선언할 때에는 extrinsic state만 사용하도록 한다.

flyweight1.cpp

#include <iostream>
 #include <string>
 #include <vector>

 #define NUMBER_OF_SAME_TYPE_CHARS 3;

 /* Actual flyweight objects class (declaration) */
 class FlyweightCharacter;

 /*
    FlyweightCharacterAbstractBuilder is a class holding the properties which are shared by
many objects. So instead of keeping these properties in those objects we keep them externally making
    objects flyweight. See more details in the comments of main function.
 */
 class FlyweightCharacterAbstractBuilder {
    FlyweightCharacterAbstractBuilder() {}
    ~FlyweightCharacterAbstractBuilder() {}
 public:
    static std::vector<float> fontSizes; // lets imagine that sizes be may of floating point type
    static std::vector<std::string> fontNames; // font name may be of variable length (lets take 6 bytes is average)

static void setFontsAndNames();
    static FlyweightCharacter createFlyweightCharacter(unsigned short fontSizeIndex,
        unsigned short fontNameIndex,
        unsigned short positionInStream);
 };

 std::vector<float> FlyweightCharacterAbstractBuilder::fontSizes(3);
 std::vector<std::string> FlyweightCharacterAbstractBuilder::fontNames(3);
 void FlyweightCharacterAbstractBuilder::setFontsAndNames() {
    fontSizes[0] = 1.0;
    fontSizes[1] = 1.5;
    fontSizes[2] = 2.0;

    fontNames[0] = "first_font";
    fontNames[1] = "second_font";
    fontNames[2] = "third_font";
 }

 class FlyweightCharacter {
    unsigned short fontSizeIndex; // index instead of actual font size
    unsigned short fontNameIndex; // index instead of font name

    unsigned positionInStream;

 public:

    FlyweightCharacter(unsigned short fontSizeIndex, unsigned short fontNameIndex, unsigned short positionInStream):
        fontSizeIndex(fontSizeIndex), fontNameIndex(fontNameIndex), positionInStream(positionInStream) {}
    void print() {
std::cout << "Font Size: " << FlyweightCharacterAbstractBuilder::fontSizes[fontSizeIndex]
            << ", font Name: " << FlyweightCharacterAbstractBuilder::fontNames[fontNameIndex]
            << ", character stream position: " << positionInStream << std::endl;
    }
    ~FlyweightCharacter() {}
 };

 FlyweightCharacter FlyweightCharacterAbstractBuilder::createFlyweightCharacter(unsigned short fontSizeIndex, unsigned short fontNameIndex, unsigned short positionInStream) {
    FlyweightCharacter fc(fontSizeIndex, fontNameIndex, positionInStream);

    return fc;
 }

 int main(int argc, char** argv) {
    std::vector<FlyweightCharacter> chars;

    FlyweightCharacterAbstractBuilder::setFontsAndNames();
    unsigned short limit = NUMBER_OF_SAME_TYPE_CHARS;

    for (unsigned short i = 0; i < limit; i++) {
        chars.push_back(FlyweightCharacterAbstractBuilder::createFlyweightCharacter(0, 0, i));
        chars.push_back(FlyweightCharacterAbstractBuilder::createFlyweightCharacter(1, 1, i + 1 * limit));
        chars.push_back(FlyweightCharacterAbstractBuilder::createFlyweightCharacter(2, 2, i + 2 * limit));
    }
    /*
        Each char stores links to it's fontName and fontSize so what we get is:

        each object instead of allocating 6 bytes (convention above) for string
        and 4 bytes for float allocates 2 bytes for fontNameIndex and fontSizeIndex.

        That means for each char we save 6 + 4 - 2 - 2 = 6 bytes.
        Now imagine we have NUMBER_OF_SAME_TYPE_CHARS = 1000 i.e. with our code
        we will have 3 groups of chars whith 1000 chars in each group which will save us

        3 * 1000 * 6 - (3 * 6 + 3 * 4) = 17970 saved bytes.

        3 * 6 + 3 * 4 is a number of bytes allocated by FlyweightCharacterAbstractBuilder.

        So the idea of the pattern is to move properties shared by many objects to some
        external container. The objects in that case don't store the data themselves they
        store only links to the data which saves memory and make the objects lighter.
        The data size of properties stored externally may be significant which will save REALLY
        huge ammount of memory and will make each object super light in comparisson to it's counterpart.
        That's where the name of the pattern comes from: flyweight (i.e. very light).
    */
    for (unsigned short i = 0; i < chars.size(); i++) {
        chars[i].print();
}

    std::cin.get(); return 0;
 }

flyweight2.cpp

#include <iostream>
#include <string.h>

using namespace std;

class Icon
{
public:
    Icon(char *fileName)
    {
        strcpy(_name, fileName);
        if (!strcmp(fileName, "go"))
        {
            _width = 20;
            _height = 20;
        }
        if (!strcmp(fileName, "stop"))
        {
            _width = 40;
            _height = 40;
        }
        if (!strcmp(fileName, "select"))
        {
            _width = 60;
            _height = 60;
        }
        if (!strcmp(fileName, "undo"))
        {
            _width = 30;
            _height = 30;
        }
    }
    const char *getName()
    {
        return _name;
    }
    void draw(int x, int y)
    {
        cout << "   drawing " << _name << ": upper left (" << x << "," << y <<
            ") - lower right (" << x + _width << "," << y + _height << ")" <<
            endl;
    }
private:
    char _name[20];
    int _width;
    int _height;
};

class FlyweightFactory
{
public:
    static Icon *getIcon(char *name)
    {
        for (int i = 0; i < _numIcons; i++)
            if (!strcmp(name, _icons[i]->getName()))
                return _icons[i];
        _icons[_numIcons] = new Icon(name);
        return _icons[_numIcons++];
    }
    static void reportTheIcons()
    {
        cout << "Active Flyweights: ";
        for (int i = 0; i < _numIcons; i++)
            cout << _icons[i]->getName() << " ";
        cout << endl;
    }
private:
    enum
    {
        MAX_ICONS = 5
    };
    static int _numIcons;
    static Icon *_icons[MAX_ICONS];
};

int FlyweightFactory::_numIcons = 0;
Icon *FlyweightFactory::_icons[];

class DialogBox
{
public:
    DialogBox(int x, int y, int incr): _iconsOriginX(x), _iconsOriginY(y),
        _iconsXIncrement(incr){}
    virtual void draw() = 0;
protected:
    Icon *_icons[3];
    int _iconsOriginX;
    int _iconsOriginY;
    int _iconsXIncrement;
};

class FileSelection: public DialogBox
{
public:
    FileSelection(Icon *first, Icon *second, Icon *third): DialogBox(100, 100,
        100)
    {
        _icons[0] = first;
        _icons[1] = second;
        _icons[2] = third;
    }
    void draw()
    {
        cout << "drawing FileSelection:" << endl;
        for (int i = 0; i < 3; i++)
            _icons[i]->draw(_iconsOriginX + (i *_iconsXIncrement), _iconsOriginY);
    }
};

class CommitTransaction: public DialogBox
{
public:
    CommitTransaction(Icon *first, Icon *second, Icon *third): DialogBox(150,
        150, 150)
    {
        _icons[0] = first;
        _icons[1] = second;
        _icons[2] = third;
    }
    void draw()
    {
        cout << "drawing CommitTransaction:" << endl;
        for (int i = 0; i < 3; i++)
            _icons[i]->draw(_iconsOriginX + (i *_iconsXIncrement), _iconsOriginY);
    }
};

int main()
{
    DialogBox *dialogs[2];
    dialogs[0] = new FileSelection(FlyweightFactory::getIcon("go"),
        FlyweightFactory::getIcon("stop"), FlyweightFactory::getIcon("select"));
    dialogs[1] = new CommitTransaction(FlyweightFactory::getIcon("select"),
        FlyweightFactory::getIcon("stop"), FlyweightFactory::getIcon("undo"));

    for (int i = 0; i < 2; i++)
        dialogs[i]->draw();

    FlyweightFactory::reportTheIcons();
}

http://en.wikibooks.org/wiki/C%2B%2B_Programming/Code/Design_Patterns#Flyweight
